S 8000 is an economical, material-optimised rebate-seal system with a 74 mm depth. It is designed for efficient production and high stability — the reliable, cost-effective choice for residential developments, renovation and large housing projects.
- Excellent value — optimised material use and efficient fabrication
- 5-chamber version for maximum stability or 6-chamber version for better insulation
- Large main chamber for heavy steel reinforcement — stable even in large sizes
- Glazing up to 48 mm (50 mm with STV®)
- Impact resistance up to class 4
Reliable for many building situations
Depending on the project, S 8000 is available with 5 chambers for excellent statics or with 6 chambers for good thermal insulation. The spacious main chamber takes massive steel reinforcements, so even large windows stay stable and durable. A comprehensive range of system accessories makes it easy to realise all common window and door types.

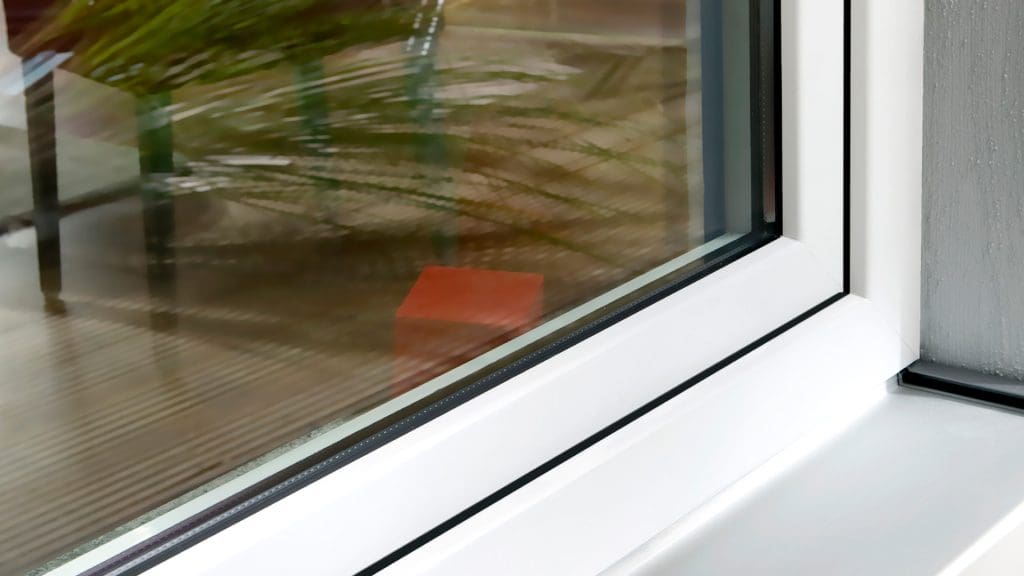

Windows
Thanks to their well-thought-out design, S 8000 profiles are a dependable basis for stable, long-lasting windows. The system combines cost-efficiency with functionality and suits both new buildings and renovations.
Front doors
S 8000 profiles also form high-quality front doors. Large steel reinforcements in the main chamber provide reliable statics, and extensive equipment options let the doors meet very different requirements while matching the windows perfectly. See Entrance doors.

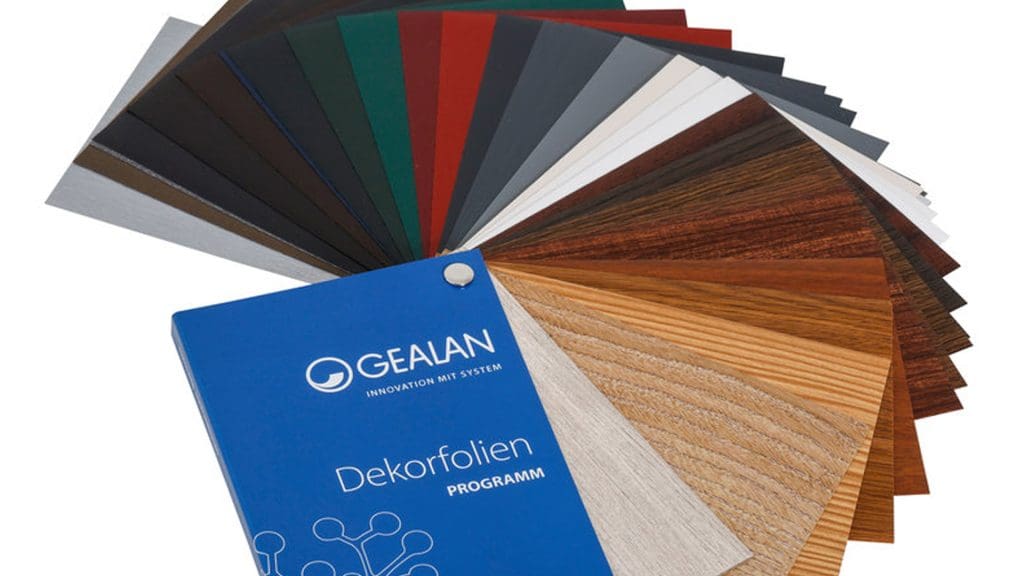

Surfaces
Besides classic white, a wide range of high-quality decorative foils is available, so windows and doors can be matched to the colour and style of the building.
Technical specifications
| Installation depth | 74 mm |
|---|---|
| Chambers | 5 or 6 |
| Sealing | Rebate seal |
| Overlap height | Frame 18/20 mm · Sash 18/20 mm |
| Max. glazing thickness | up to 48 mm (seal) · 50 mm (STV®) |
| Uf value | up to 1.2 W/(m²K) |
| Finishes | White · Decorative foils · BALANCE |
| Applications | Windows · Front doors · Lift-slide doors |
Tested performance
| Driving rain tightness (EN 12208) | up to class 9A |
|---|---|
| Air permeability (EN 12207) | up to class 4 |
| Wind load resistance (EN 12210) | up to class C5/B5 |
| Impact resistance | up to class 4 |
| Sound insulation | 34–47 dB |
Interested in GEALAN S 8000? Our team in İstanbul will advise you on the right configuration, colours and glazing for your project and prepare a free quote. Contact us or call +90 532 541 72 03.
Planning a project?
Send us your drawings or window list — we reply with a quote and the right GEALAN system within one working day.
